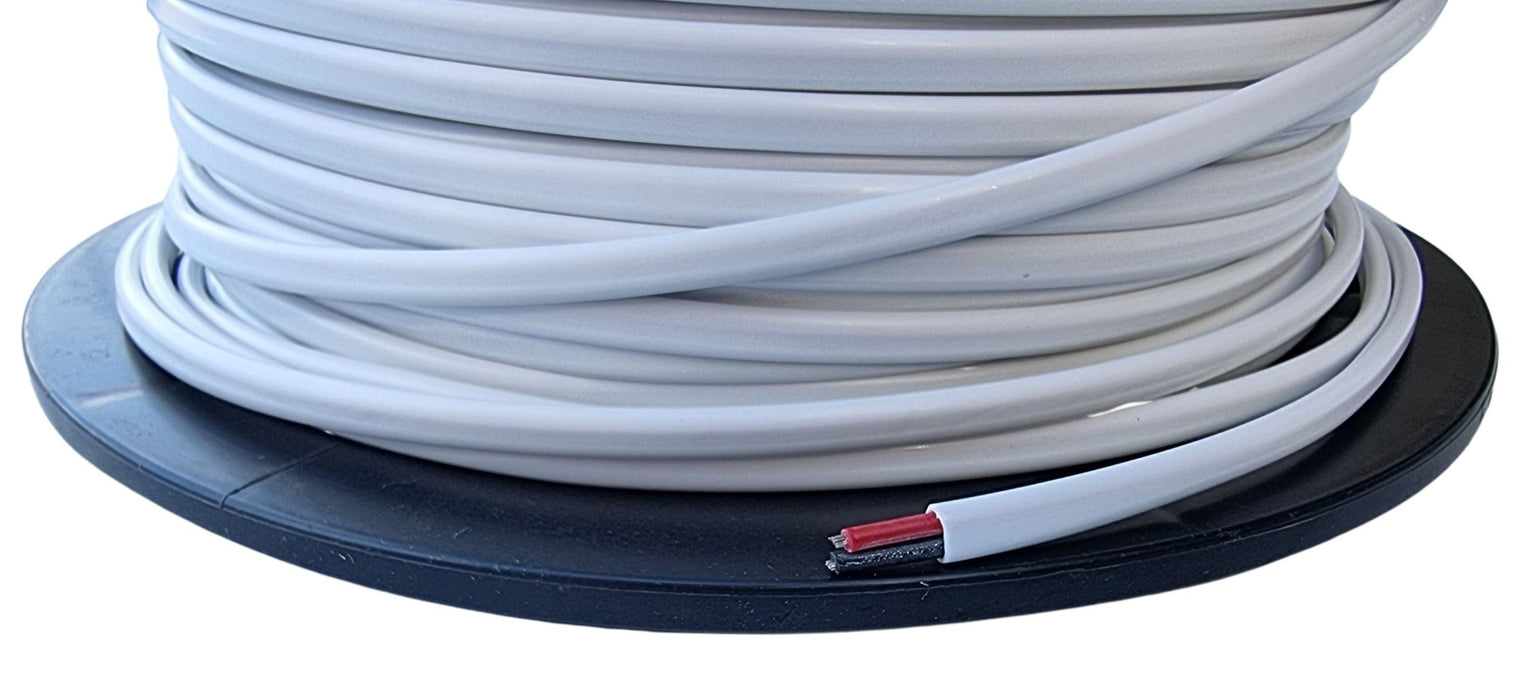

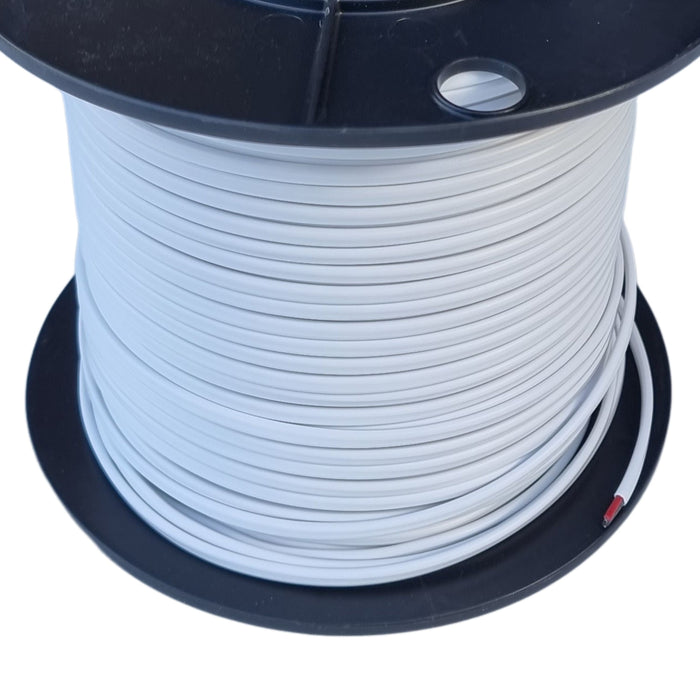

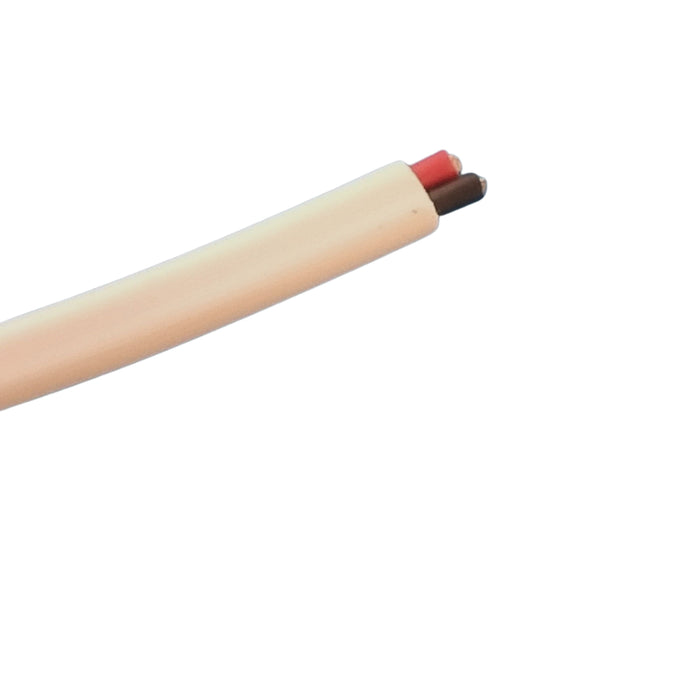

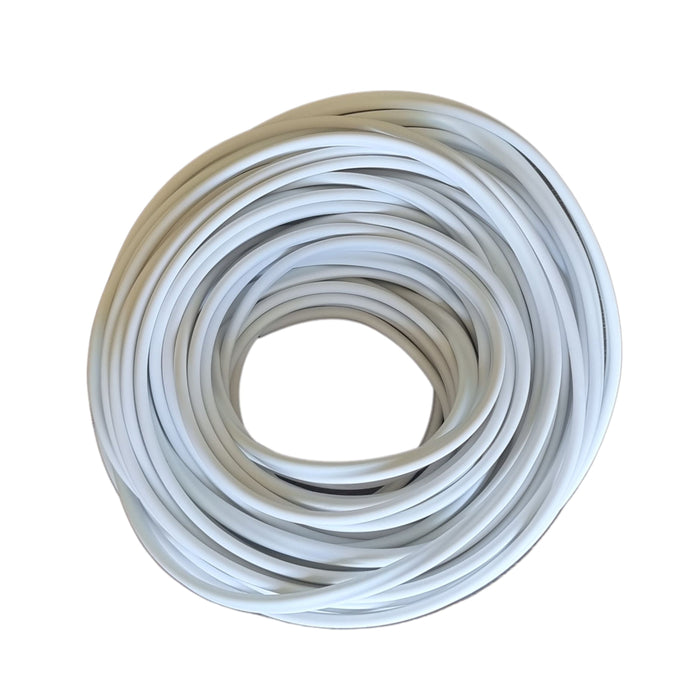

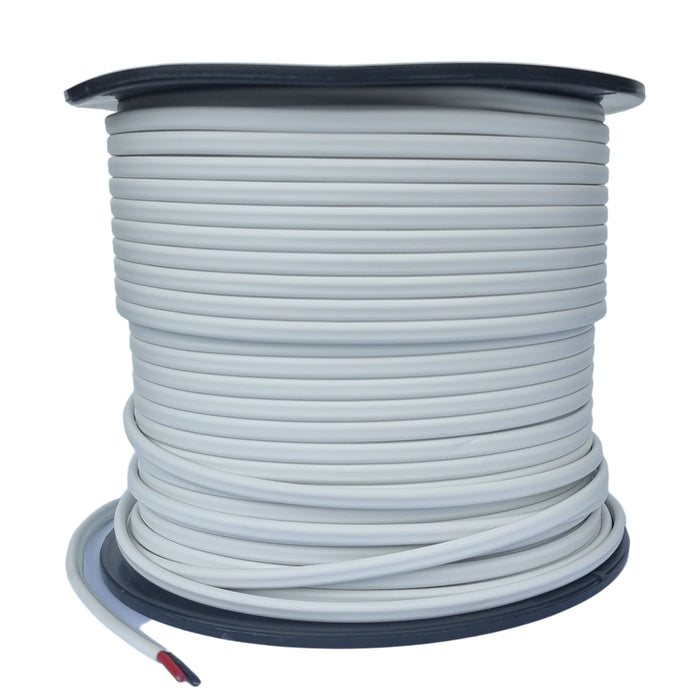

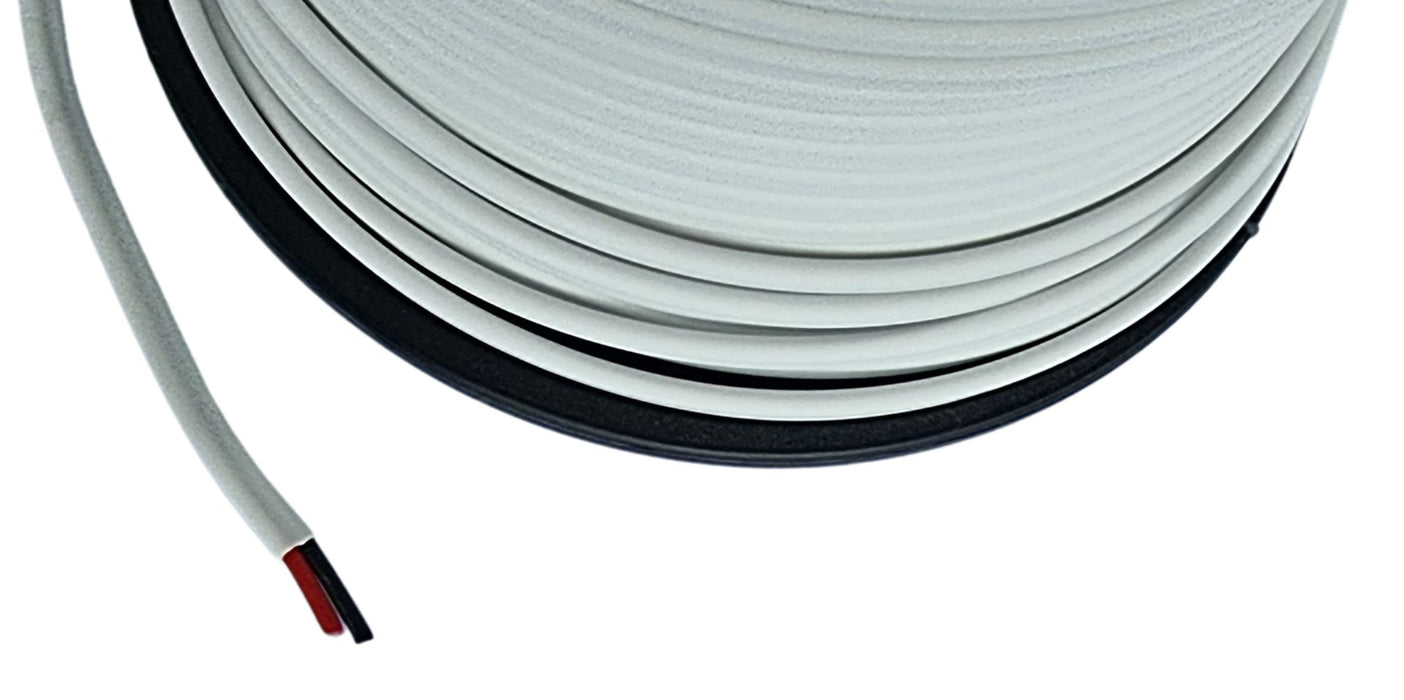

10 Metres Tinned Marine Electrical Cable
by MW Boating
Original price
$20.00
-
Original price
$78.00
Original price
$20.00
$20.00
-
$78.00
Current price
$20.00
Tin annealed marine grade cable. Designed for use in the marine environment as tinned copper wire is more corrosion resistant than plain copper wire.
Suitable for use in low voltage, high amperage installations. P.V.C. V90 sheath and insulation.
Meets Australian Standards AS1125 (Conductor), AS/NZS3191 (P.V.C.) & AS/NZS3000:2000 (Voltage).
*The mm is an industry term that describes the cable size, NOT the conductor cross-section area
Specifications:
|
SIZE mm |
RATING AMPS |
NOMINAL OD (mm) |
NOMINAL AREA (mm2) |
STANDING (no/mm) |
SHEATH COLOUR |
|
2 |
6 |
3.20 x 5.20 |
.54 |
7/.03 |
WHITE (RED/BLACK) |
|
3 |
16 |
3.50 X 5.90 |
1.13 |
16/0.3 |
WHITE (RED/BLACK) |
|
4 |
22 |
3.90 X 6.70 |
1.84 |
26/0.3 |
WHITE (RED/BLACK) |
|
6 |
40 |
5.50 X 9.50 |
4.59 |
65/0.3 |
WHITE (RED/BLACK) |
